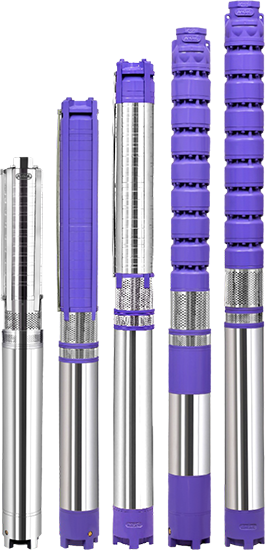

6" Bore-well Submersible Pumps

Features

  • Available in Radial (Low Head), Radial (High Head) & Mixed Flow options
  • Delivery Sizes commensurate with Flow
  • Maximum Outer Diameter is 144 mm
  • All Motors Water Filled; in Three Phase Application
  • Motor Power ranges from 3.00 HP through 35.00 HP
  • Motors of capacity 3.00 HP through 7.50 HP are with DOL Start
  • Motors of capacity 10.00 HP through 35.00 HP are with Star-Delta Start
  • Coupling is over key-way Arrangement
  • Thrust Bearing is made up of Carbon
  • Motors are available in the following options
    • - Standard: Voltage range 250 V - 440 V
      3.0 HP through 15.00 HP
      Available with all pumps
    • - Turbo: Voltage range 250 V - 440 V
      3.00 HP through 35.00 HP
      Available with all pumps
    • - WVR: Voltage range 160 V - 415 V
      5.0 HP through 7.50 HP Available
      with Mixed Flow pumps
    • - WVR Eco: Voltage range 160 V - 415 V
      5.0 HP through 6.00 HP Available
      with Mixed Flow pumps
    • - ELV: Voltage range 150 V - 300 V
      5.00 HP through 7.50 HP
      Available with Mixed Flow pumps
    • - ECO: Voltage range 250 V - 440 V
      3.00 HP through 7.50 HP
      Available with Radial Flow (Low Head) & Mixed Flow pumps

Nomenclature

E.g.,

A6S

TUR

0600

KD

080

08

Stages



Hydraulic

Pump Details
RF = Radial Flow (Low Head)
KD = Radial Flow (High Head) Deluxe
KS = Radial Flow (High Head) Super
MF = Mixed Flow

Motor Power
2000 denotes 20.00 HP
0750 denotes 7.50 HP
1750 denotes 17.50 HP, etc.

Motor Type
TUR = Turbo, ECO = Eco
REG = Standard, WVR = WVR
EWV = WVR Eco, ELV = ELV

General Prefix
Denoting Water-filled 6” 3Ø Motor

MOC

Part

Material

Grade

Reference Std

Shaft

Chrome Steel

AISI 410

ASTM A 276

Shaft*

Chrome Steel

AISI 431

ASTM A 276

Impeller

Chrome Steel

AISI 410

ASTM A 276

Diffuser

Cast Iron

FG 200

IS: 210

Diffuser**

Chrome Steel

AISI 410

ASTM A 276

Bowl

Cast Iron

FG 200

IS: 210

NRV Body

Cast Iron

FG 200

IS: 210

Bushes

Bronze

LTB 4

IS: 318

Rotor

Copper





* For Motors over 12.50 HP Power Rating
** Available as 'Deluxe' variant in Radial Flow (High Head) Models

Motors

OD

Connection

Rated Power

Rated

Current

Operating

Voltage

in mm



in kW

in HP

in Amperes

in Volts

142

DOL

2.20

3.00

6.50

250-440

142

DOL

3.00

4.00

8.50

250-440

142

DOL*

3.70

5.00

10.00

250-440

142

DOL*

4.50

6.00

12.00

250-440

142

DOL*

5.50

7.50

14.50

250-440

142

S/D

7.50

10.00

19.50

250-440

142

S/D

9.30

12.50

25.00

250-440

142

S/D

11.00

15.00

29.00

250-440

142

S/D

13.00

17.50

34.00

250-440

142

S/D

15.00

20.00

39.00

250-440

142

S/D

18.50

25.00

44.00

250-440

142

S/D

22.00

30.00

58.00

250-440

142

S/D

26.00

35.00

67.00

250-440

The above data are against ‘Turbo’ & ‘Standard’ Motors only

Pumps

Hydraulic
Name

Hydraulic

Discharge
at BEP

Head/
Stage at
BEP

NRV Size

Max.
No. of
Stages





LPM

M

mm



HH040

Radial HH

90

8.80

50

24

HH050

Radial HH

112

11.80

50

24

HH060

Radial HH

150

12.50

50

30

HH080

Radial HH

190

12.00

50

30

HH100

Radial HH

252

11.50

65

30

HH125

Radial HH

372

8.50

65

30

HH150

Radial HH

420

10.80

65

23

HH200

Radial HH

475

12.00

65

17

HH250

Radial HH

570

11.00

65

14

LH030

Radial LH

129

4.80

50

33

LH040

Radial LH

150

7.20

50

31

LH050

Radial LH

195

7.00

50

24

LH060

Radial LH

200

9.00

50

30

LH080

Radial LH

234

8.50

50

24

LH100

Radial LH

280

9.40

50

20

MF100

Mixed Flow

415

7.50

65

25

MF125

Mixed Flow

450

7.80

75

25

MF150

Mixed Flow

600

7.60

75

20

MF200

Mixed Flow

747

8.30

75

17

MF250

Mixed Flow

924

9.00

100

14

MF300

Mixed Flow

960

9.00

100

12
