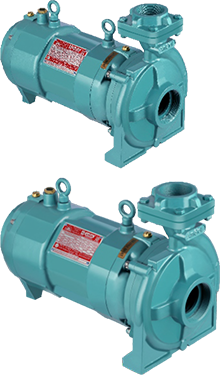

Open-well Submersible Pumps (Big) (Venus)
Features
- All Pumps Centrifugal Radial Flow
- Delivery & Suction Sizes commensurate with Discharge
- All Motors Induction Type & Water Cooled
- Plug-In into 400V, 50 Hz, 3Ø AC Power through Suitable Control Panel
- Plug-In in to 200V, 50Hz, 1Ø AC Power through Suitable Control Panel
Nomenclature
E.g.,
ABG |
T/P |
0600 |
H4 |
000 |
01 |
Stages | |||||
MOC 000 Denotes Standard |
|||||
Hydraulic Type H Denotes High Head L Denotes Low Head M Denotes Medium Head |
|||||
Motor Power 0300 denotes 3.00 HP 0500 denotes 5.00 HP |
|||||
Phase S/P Denotes 1 Phase T/P Denotes 3 Phase D/P Denotes 2 Phase |
|||||
General Prefix Denoting Big Open-well Submersible |
MOC
Part | Material | Grade | Reference Std |
---|---|---|---|
Shaft | Chrome Steel | AISI 410 | ASTM A 276 |
Impeller | Cast Iron | FG 200 | IS:210 |
Motor Shell | Cast Iron | FG 200 | IS:210 |
Bushes | Brass | - | - |
Range
- Motor Power Range from 3.00 HP through 5.00 HP
- Pump sizes from 50 x 40 mm through 65 x 65 mm Diameter
- Rotors in Copper Application as well as Aluminium
- Motor Shell in Cl Application
