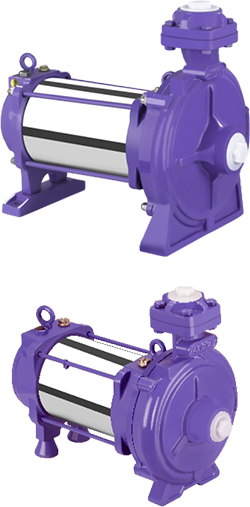

Open-well Submersible Pumps (Mini) Mercury
Features
- All Pumps Centrifugal Flow
- Delivery & Suction Sizes commensurate with Discharge
- All Motors Induction Type & Water Cooled
- Plug-In into 200V, 50 Hz, 1Ø AC Power through Suitable Control Panel
- Plug-In into 400V, 50 Hz, 3Ø AC Power through Suitable Control Panel
- Plug-In into 350V, 50 Hz, P2P AC Power through Suitable Control Panel
Nomenclature
E.g.,
AMO |
S/P |
0150 |
H4 |
198 |
01 |
align="center">Stages | |||||
MOC 000 Denotes Standard |
|||||
Hydraulic Number H Denotes High Head L Denotes Low Head |
|||||
Motor Power 0100 denotes 1.00 HP 0150 denotes 1.50 HP 0200 denotes 2.00 HP, etc. |
|||||
Phase S/P Denotes 1 Phase T/P Denotes 3 Phase D/P Denotes 2 Phase |
|||||
General Prefix Denoting Mini Open-well Submersible |
MOC
Part | Material | Grade | Reference Std |
---|---|---|---|
Shaft | Chrome Steel | AISI 410 | ASTM A 276 |
Impeller | Cast Iron | FG 200 | IS:210 |
Motor Shell | Stainless Steel | SS 202 J4 | - |
Bushes | Brass | - | - |
Range
- Motor Power Range from 0.50 HP through 2.00 HP
- Pump sizes from 25 x 25 mm through 50 x 50 mm Diameter
- Rotors in Copper as well as Aluminium Application
- Motor Shell in SS Application
