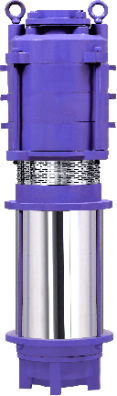

Features
- All Pumps Centrifugal Radial Flow
- Delivery Size is Constant at 100 mm
- All Motors Induction Type & Water Cooled
- Plug-In into 400V, 50 Hz, 3Ø AC Power through Suitable Control Panel
Nomenclature
E.g.,
AVR |
T/P |
1500 |
HH |
000 |
03 |
|
|
|
|
|
|
|
|
| Stages | ||||||
| MOC 000 Denotes Standard |
||||||
| Hydraulic Type HH Denotes High Head LH Denotes Low Head |
||||||
| Motor Power 0500 denotes 5.00 HP 0750 denotes 7.50 HP 1000 denotes 10.00 HP, etc. |
||||||
| Phase T/P Denotes 3 Phase |
||||||
| General Prefix Denoting Vertical Open-well Submersible |
||||||
MOC
| Part | Material | Grade | Reference Std |
|---|---|---|---|
| Shaft | Chrome Steel | AISI 410 | ASTM A 276 |
| Impeller | Cast Iron | FG 200 | IS:210 |
| Motor Shell | Cast Iron | SS 202 | - |
| Bushes | Bronze | LTB 4 | IS:318 |
Range
- Motor Power Range from 5.00 HP through 20.00 HP
- Rotors in Copper Application
- Motor Shell in CI Application
